Vehicle series
|

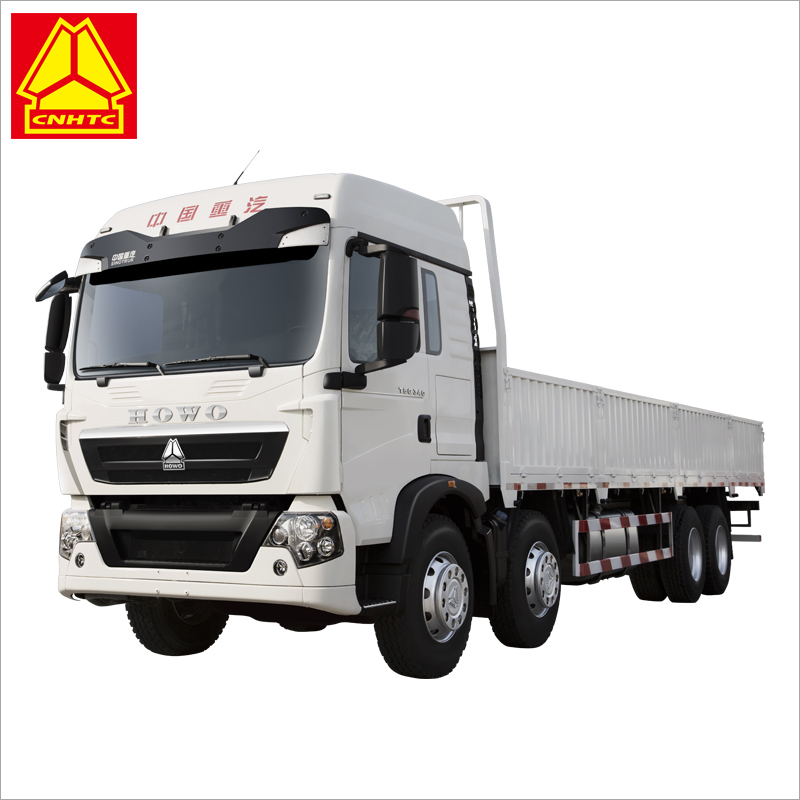

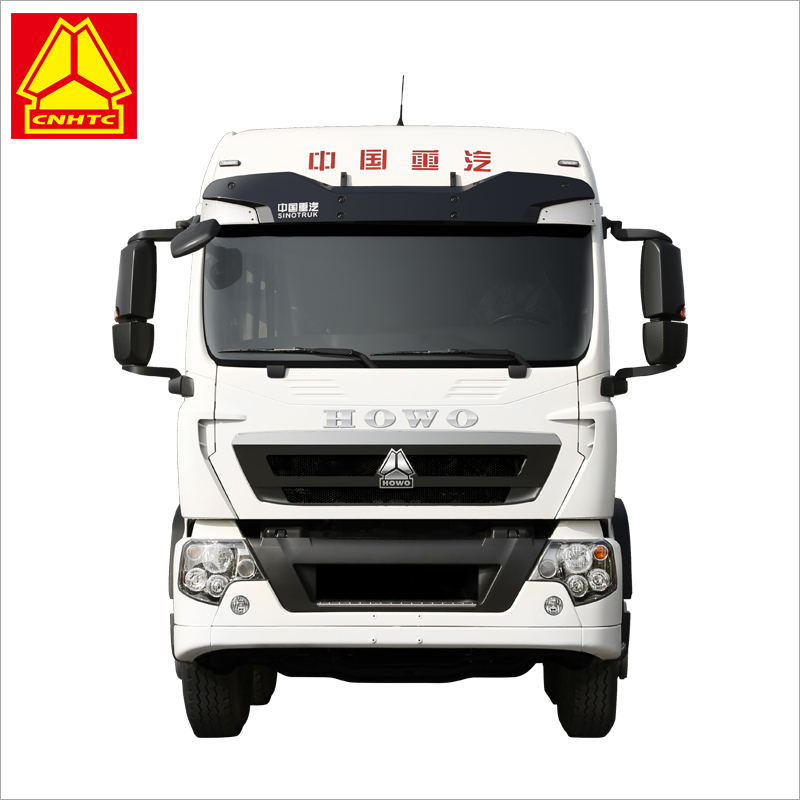

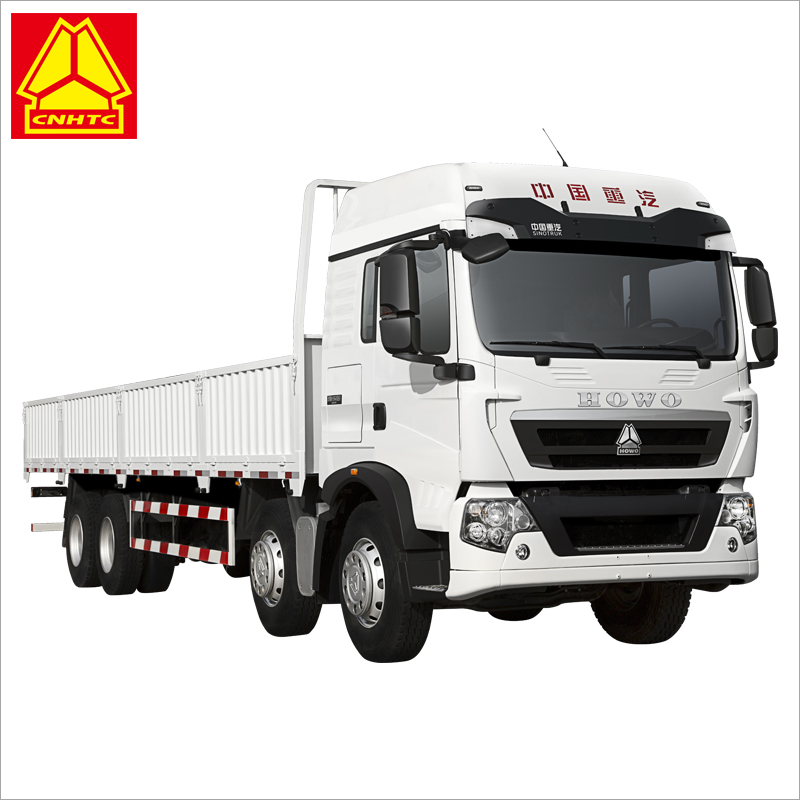

T5G 8x4 Cargo Truck
|
|
Cab
|
T5G-W/V
|
|
Engine
|
Model
|
MC07
|
|
Power(Ps/rpm)
|
Euro 3/4 (240-336)/2300
|
|
Maximum torque(Nm/rpm)
|
Euro 3/4 (925-1250)/1200-1800
|
|
Displacement(L)
|
6.87
|
|
Transmission
|
HW13710C 10-speed manual control gearbox
Ratio:1 10.52,2 7.83,3 5.85,4 4.35,5 3.25,6 2.42,7 1.80,8 1.34,9 1.00,10 0.75,R1 9.47,R2 2.18
|
|
Optional:ZF9T1280 OD 9-speed manual control gearbox with synchronizer Ratio:1 12.56,2 7.85,3 5.02,4 3.43,5 2.91,6 2.21,7 1.46,8 1.00,9 0.85,R1 11.34;DC7J120TC 7-speed manual control gearbox with synchronizer for 280/240PS Ratio:1 8.39,2 5.55,3 3.63,4 2.29,5 1.45,6 1.00,7 0.76,R1 8.26
|
|
Clutch
|
Φ430 diaphragm spring clutch,Single plate
|
|
Front axle
|
153, forging I-beam front axle,Drum brake
|
|
Rear axle
|
153, central single reduction,Drum brake,i=4.875, Optional i=5.143
|
|
Suspension
|
Steer Axle
|
Semi-elliptical leaf springs with shock absorbers and stabilizer
|
|
Drive Axle
|
Bogie leaf springs with integrated balance shaft and stabilizer
|
|
Braking system
|
Type
|
Air brake system
|
|
Service brake
|
Dual-circuit air brake
|
|
Parking Brake
|
Spring energy, compressed air operating on rear wheels
|
|
Auxiliary brake
|
Exhaust valve braking(EVB)
|
|
Electric system
|
Type
|
SINOTRUK CAN bus system with VDO instrument
|
|
Voltage
|
24V
|
|
Batteries
|
2 x 12V,165 Ah
|
|
Alternator Power
|
28V/80A
|
|
Starter Power
|
5 KW
|
|
Optional
|
180AH batteries 12V electric socket
|
|
Wheels & Tyres
|
Tyres
|
10.00R20
|
|
Wheels
|
7.50-20
|
|
Fuel Tank
|
Capacity
|
300 Liter
|
|
Type
|
Rectangular, lockable
|
|
Frame
|
Material
|
High tensile steel
|
|
Section
|
280 x 80 x (8+4) mm
|
|
Frame width
|
Front 965mm / rear 865 mm
|
|
Weights (kg)
|
Complete vehicle kerb weight
|
11000/11280
|
|
Chassis kerb weight
|
9100/9180
|
|
Gross Vehicle Weight
|
31000
|
|
Front axle loading capacity
|
5500x2
|
|
Rear axle loading capacity
|
20000
|
|
Vehicle Dimensions (mm)
|
Overall length x Overall width x Overall height
|
(11090~12000)x 2496 x 3020/3320
|
|
Wheelbase
|
3800~4600
|
|
Front overhang/Rear overhang
|
1430/(2490~2610)
|
|
Wheel track of front axle
|
2020
|
|
Wheel track of rear axle
|
1860
|
|
Performance
|
Maximum speed(km/h)
|
114
|
|
Maximum gradeability(%)
|
35
|
|
Minimum turning diameter(m)
|
24000
|
|
Comprehensive fuel consumption(L/100km)
|
29 ~ 34
|
